How to Make a Pipe Bending Machine

Are you a hobbyist in need of a pipe bending machine, but don’t have enough savings to buy a good quality product? No problem. There are always other solutions that can be considered. One solution is to design and build your own pipe bender. Read on to know more.

Planning a Pipe Bending Machine
The points below elaborate on the initial planning process to build a pipe bender at home.
  • Decide on the Aim and Design of the Bender: Before you start looking at equipment, the first thing you need to decide is the purpose of the bender. What kinds of bend will it make? What will the primary manufacturing material be? How big do you want it? Let’s assume that the bender will be designed to create curvatures in steel tubes. The manufacturing material can also be steel, as it provides benefits of strength, manufacturability, and corrosion resistance. The size of the bender can be medium, so that work will be convenient, and you can move the bender around, if required.
  • Gather the Manufacturing Equipment: You will need the following materials and equipment to construct your tube and pipe bender:
    • File - 1
    • Drill - 1
    • Vise - 1
    • Nuts - 3
    • Bolts - 2
    • Metal saw -1
    • Welding machine -1
    • DIA 8 rod – 1 (120 mm in length)
    • DIA ¾ʺ pipe -1 (1500 mm in length)
    • 50 x 50 flat bar – 6 (75 mm)
    • 50 x 5 flat bar – 1 (500 mm in length)
    • U-shaped DIA 8 rod -1 (180 mm in length)
    • 40 x 40 x 5 angle mild steel – 3 (300, 300, and 500 mm in length respectively)
As this is going to be a very simple design, there won’t be any need for a diagram. You can simply move onto the manufacturing steps.

Building the Primary Bending Component
The following steps showcase various points on making the primary pipe bender component.
  • Drill Holes in the 75 mm Flat Bars: Take the file and create a u-shaped space at one end of each bar. This is done to make the bending process easier. Ensure that the spaces of all the bars align together. Collect the bars and place them on top of one another. Choose a center point, and use the drill to create holes in all the bars.
  • Tack the Flat Bars: Take one of the 8 mm rods, and place it in the hole of the top most flat bar. Let the rod come out through the other side of the hole. Use the welding machine to tack weld the rod at the hole. For the rest of the bars, use a nut to create an appropriate space between the flat bars. Then repeat the first part of this step. Continue the tack welding process till all the flat bars have been welded to the rod.
  • Cut off the 8 mm Rod: When you have completed tacking the rod to the flat bars, you may have some excess left. Use the metal saw to cut the remainder of the rod off. Cut the rod about 1ʺ, or 1 1/5ʺ away from the tack weld. If the rod has been used in the flat bar tack welding process, then leave the components as they are.
Creating the Bending Mechanism The flat bar component is a part of the bending mechanism. The steps below show you how to build it with the pipe, 50x5 mm flat bar, and u-shaped rod.
  • Curve the Component: Take the entire flat bar component and place it in the vise. Only compress the bottom end of the component. The stress at the bottom will cause the component to curve. When the curve is sufficient, remove the component from the vise.
  • Attach the Pipe to the Component: Place the component on the table, and turn it upside down. Choose one side of the bottom flat bar as the area to attach the pipe. Take the pipe and place it firmly against the side. Ensure that the edges of the pipe are flat against the last bar. Using the welding machine to attach them together.
  • Attach the 500 mm Flat Bar: This component and the u-shaped rod are used to support the bending component. One end of the flat bar will have to be attached to the pipe and curved component. Measure the distance from the end of the curved component to the pipe. Measure the same distance on the flat bar, and create a short angled cut with a small, finger-like edge at the end. Place the bar on the pipe and the curved component. The fingered edge of the bar should be on top of the curved component. Use the welding machine to tack the flat bar to the pipe and component.
  • Welding the U-shaped Rod to the Mechanism: Place the ends of the u-shaped rod between the fingered edge of the flat bar. Tack the rod to the bar and the curved component. With this step, your bending mechanism has been created.
Building the Pipe Bender Clamp
The steps below show you how to create the clamp for the pipe bending machine.
  • Create the Basic Clamping Device: Take the two 30 mm angled pieces. One piece will be used as the top of the clamp, while the other piece will be the bottom. The top piece should be placed as a turned ‘L’, while the bottom piece should be placed on its edge, resembling a ‘V’ shape. Take the top piece, and cut out a small square or rectangular space at the center of its bottom angle. Drill two holes at the ends of it. Also, drill two holes at the ends in the bottom piece as well. The four holes should align together.
  • Connect the Angles: Place bolts into the bottom angle holes, ensuring that the threads are facing upwards. Tack the bolt heads to the piece, ensuring that the bolts will not loosen, or fall off. Take the third 500 mm angle, hold it with the tipped edge facing you. Place it in the square space created earlier. Ensure that a small part of it is sticking out at the other end. Then tack the two pieces together. Connect the 300 mm pieces together using the bolts, and secure them with bolt nuts. This will complete the clamping device.
Using the Pipe Bender Your pipe bending machine is ready for use. Remove the nuts from the clamp, place the pipe between the angles, and re-secure the clamp. For added support, you can place the clamp in a vise. Take the bending mechanism, and hold it against the pipe end that requires bending. Apply pressure and lift the mechanism in an upwards direction. This will cause the pipe to bend.
This pipe bender design is simple, and may only take a day to build. You can even create multiple bending mechanisms, if you wish to bend pipes of different diameters. With it, you can go right into creating metal artworks.
Read More

Tuesday, 23 February 2016

What are the Differences between Pipes and Tubes?

When thinking about pipe and tube fabrication, you may think that these two cylindrical structures are pretty much the same. However, this is not true. While these two components are similar in certain ways, they are completely different in other aspects. If you are looking at getting into pipe and tube fabrication, then this is one important difference you need to understand.

How to Differentiate between Pipes and Tubes

So what is the difference between pipes and tubes? Read the two points below to find out.
  • Pipes: A pipe is designed to provide transport gases or fluids. Common examples of fluids are water and oil. A pipe is determined by its inside diameter or ID. The ID helps determine the capacity of a pipe in an application. The ID is further determined by the pipe’s thickness or schedule. A pipe schedule and interior diameter differ greatly. For example, if you examined two schedule pipes of 2ʺ and 6ʺ, you would find the schedule of the 2ʺ pipe to be 154ʺ, while the schedule for the 6ʺ pipe would be 0.280ʺ.
  • Tubes: While pipes are used to transport fluids or gases, tubes are mainly used as structural pieces to construct different types of machines. Tubes are determined by their outside diameter or OD. According to ASTM, if the OD of a tube is 2ʺ, the accurate measurement would be 2.125ʺ, which is relatively close. Similar to pipes, the thickness of the tube determines its inner diameter. The thickness is referred to as gauge. For example, the wall thickness of 0.083ʺ of a 2ʺ pipe is gauge 14.

Secondary Differences between Pipes and Tubes Apart from these primary differences, there are some other aspects that are taken into consideration:
  • Generally, the tolerances of tubes are higher compared to pipes.
  • In terms of price, tubes are more expensive to produce than pipes.
These are the basic differences between pipes and tubes. Now you will be in a better position to choose the right structural product for your project. Happy fabricating!
Read More

Monday, 1 February 2016

Tips for Sheet Metal Fabrication Shops to Successfully Run their Business

Sheet metal fabrication shops are involved in the crucial task of forming varied metal components that support the assembly of several products. They employ several critical activities, like shaping, cutting, bending, shrinking, and stretching of sheet metal to produce car bodies, boiler parts, and storage systems, among many others. In short, sheet metal fabrication shops function in highly pressurized environments to meet critical project deadlines and to serve the demands of customers.

Tips for Excellence

Are you a metal fabricator in charge of a sheet metal fabrication shop? Are you finding it bit difficult to manage the activities of your fab shop? If yes, then the following points will be beneficial to you.

To smoothen the operation of your metal fab shops, you can consider the below mentioned tips:
  • Downtime Utilization – Prepare for the future during production downtime! You can make use of this time to organize and modernize your shop. Dispose unnecessary items like metal chips, nuts and bolts. Don’t try to save everything as it will mess up the place and will lead to confusion. Maintain and repair sheet metal fabrication tools, so that they will be ready to perform in the future busy times. You can address all the known problems, and can regulate the work flow during the production downtime.
  • Communicate – Effective communication is critical to the success of every business. Let the workers get involved in both formal and informal communication during production downtime. This helps in building relationships and team spirits, which eventually contribute to successful project completion in the future. Efficacious and healthy communication is also important during production. Lack of communication between workers and among departments will upsurge the reworking counts, and in turn will lead to the delivery of substandard products.
  • Market Study - Study the market and understand the ongoing trends. Ensure that you are keeping in pace with the technology. Invest in new metal fabrication tools as and when they appear in the market. This is very important to stay competitive in the marketplace constantly.
Update your business strategy and implement innovative changes to play smart in the marketplace. Find out the best way to successfully conduct sheet metal fabrication job consuming lesser time. This will help to make profit-oriented business deals, and stay ahead of competitors even during production downtime.
Read More

Wednesday, 27 January 2016

Tips to Make Perfect Beads Using Bead Roller

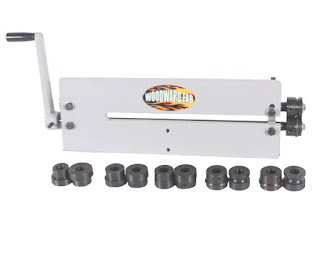

Bead rollers are the worthwhile investment to any small and medium to large sheet metal fabrication shops. They are of great help in creating several bead profiles in sheet metal panels. Additionally, these tools help strengthen flimsy steel and aluminum for varied applications.
